vSphere 5 Certificates: 4 – Replacing the default vCenter 5 Server Certificate

This is part 4 of a 7 part post on managing vSphere 5 Certificates:

  1. Installing a Root Certificate Authority
  2. Distributing the root CA certificate to clients
  3. Creating the default vCenter 5 Server Certificate and including a DNS alias
  4. Replacing the default vCenter 5 Server Certificate
  5. Replacing the default vCenter 5 Web Client Server Certificate
  6. Replacing the default vCenter 5 Inventory Service Certificate
  7. Replacing the default vSphere Update Manager 5 Server Certificate

vCenter Server actually has three different components which need their certificates updated, vCenter Server, vCenter Web Client Server and vCenter 5 Inventory Service. Initially I had only written the vCenter Server certificate steps but luckily Michael Webster (VCDX #66) keeps me on my toes and I’ve now added parts for the other two components.

You should have now created the default vCenter 5 server certificate files and can now go ahead and replace the existing certificate for vCenter 5 Server with the new certificate files you have created.

On the vCenter Server navigate to C:\ProgramData\VMware\VMware VirtualCenter.

Make a backup copy of the SSL folder.

Image(2)

Copy the rui.crt, rui.key and rui.pfx files from C:\OpenSSL-Win64\bin into the into the vCenter SSL folder

Image(1)

In vSphere 5 there is a new way to get vCenter to use the new certificate. In vSphere 4 you needed to stop and start the vCenter Service and then re-encrypt the database connection. This has now been exposed through the vCenter API so it makes it a little easier.

Use a browser and on the vCenter Server navigate to the Managed Object Browser at the following address:

http://localhost/mob/?moid=vpxd-securitymanager&vmodl=1

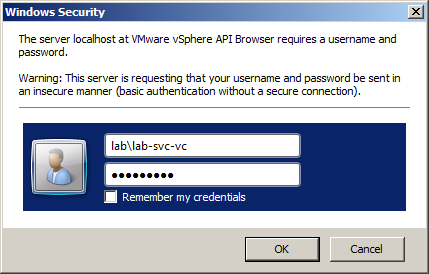

Logon as an administrator of vCenter, as I use a service account I have logged on with this account.

Image(54)

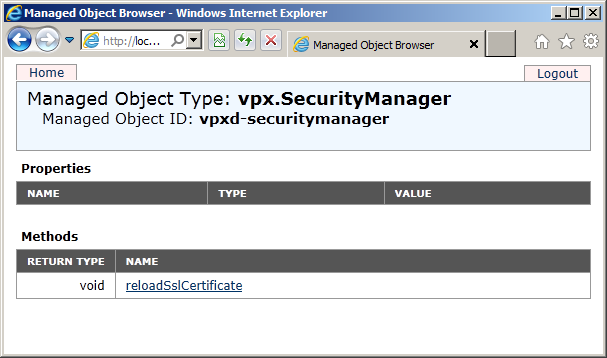

The Managed Object Type for the vpx.SecurityManager will load, Click on reloadSslCertificate

Image(55)

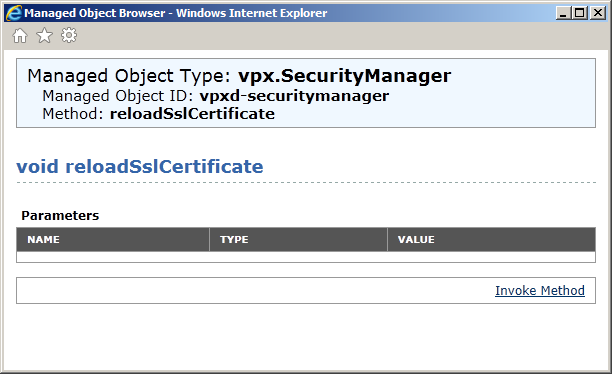

Click on Invoke Method

Image(56)

The new SSL certificates will be loaded and you should see Method Invocation Result: void if it is successful.

Image(57)

On the vCenter Server, restart the VMware vCenter Management Webservices.

You can check the trusted certificate has been successfully replaced by pointing your browser to the https:// web server address of your vCenter server (in my example https://lonvc01.lab.int/), you should no longer see the security certificate warning message.

Image(59)

If you click on the padlock symbol you should be able to see the new certificate by clicking on View certificates.

Image(60)

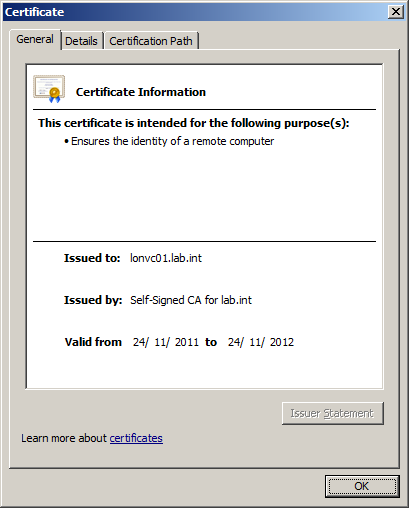

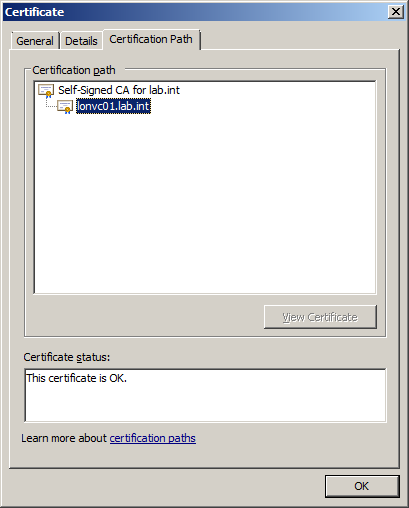

On the General tab you can see the certificate has been issued by Self-Signed CA for lab.int rather than the server itself and on the Certification Path tab you can see the certificate key chain.

Image(61)Image(62)

As you have created a certificate containing both the FQDN lonvc01.lab.int and the short name lonvc01 you should be able to launch the vSphere client with either name and no longer get any certificate warnings for the vCenter Server (you may still get warnings for other vCenter components and plug-ins which use different certificates).


Part 5 will show you how to replace the default vCenter 5 Web Client Server Certificate.

  1. Axel Muller
    June 14th, 2012 at 14:33 | #1

    Hello.. if i try to copy the new generated rui.pfx to C:\ProgramData\VMware\VMware VirtualCenter\ssl it says it is open in java.exe.

    is it nessecary to stop some services in front of that?

  2. WoodITWork
    June 15th, 2012 at 15:55 | #2

    @Axel Muller

    Hi Alex.

    You shouldn’t need to as the certificate is not normally read from the file in normal operation but held in memory.
    All I can suggest is stopping the vCenter Service, replacing the certificate file and restarting the service.

  3. yuhech
    October 17th, 2012 at 13:56 | #3

    First, thank you for this great documentation, it helps a lot.

    Considering the official doc about configuring the certificate for vshpere 5 (http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2015421) it asks to run (15.) the vpxd -p command. I thought that was for version before 5.0. You are not doing it here, is there any reason ?

    In this documentation (http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2015383) it says that the host need to be reconnect after the certificate installation.. I haven’t see anything about that here. If it is the case maybe worth mentioning it, this could lead to downtime ? (for view)

    What’s append with services connected to the VCenter. I’m thinking about the View connection server for example, does it break the connection ?

    Thank you

  4. Chris
    July 28th, 2014 at 17:40 | #4

    Your section for Managed Object Browser will result in an error if it’s not an SSL link

    https://localhost/mob/?moid=vpxd-securitymanager&vmodl=1

    This is even a mistake in their documentation online.

    http://pubs.vmware.com/vsphere-50/index.jsp?topic=%2Fcom.vmware.vsphere.solutions.doc_50%2FGUID-A462F268-8D80-48F3-8A59-45B2681B29A4.html

    But if you notice their link when referring to the specific server versus local host, they make the URL an SSL connection.
